PPGI Steel Coils Featuring Multi Layer Coatings That Combine Primer and Finish Topcoat for Superior Shield

PPGI Steel Coils Featuring Multi Layer Coatings That Combine Primer and Finish Topcoat for Superior Shield

Brand Name: YINGHANG
Model Number: 0.4mm-4mm
MOQ: 25tons
Price: Price Negotiation
Packaging Details: According To Customers' Requirement
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001 quality certificate
Keyword:
Color Coated Coil
Surface Finish:
Glossy, Matte, Textured
Paint Type:
PE, SMP, HDP, PVDF
Coating Type:
PE, SMP, HDP, PVDF
Kayword:
PPGI/PPGL Steel Coils
Tolerance:
±0.02mm
T Bend:
>=3T
Paint Back:
5-35 Microns
Zince Coating:
40-275g/m²
Base Steel Thickness:
0.12mm - 3.0mm
Material:
Pre-painted Galvanized Iron
Paint Top:
15-35 Microns
Paint Materials:
RMP,SMP,HDP,PVDF Paint
Product:
PPGI Coil
Durability:
Long-lasting
Supply Ability:
1000000 tons per year
Highlight:

PPGI steel coils with multi-layer coatings

,

PPGI steel coils with primer topcoat

,

PPGI steel coils for superior shield

Product Description
ColorMaster™ Premium Color Coated Galvanized Steel Coil (PPGI)
Product Introduction

ColorMaster™ PPGI is a high-performance architectural material that seamlessly blends the structural integrity of steel with the advanced protection of multi-layer organic coatings. Each coil undergoes a sophisticated "Two-Coat, Two-Bake" (2C2B) process: the galvanized base is first chemically cleaned and pre-treated, then a high-adhesion primer is applied, followed by a durable finish topcoat.

This multi-stage coating technology ensures that ColorMaster™ doesn't just look vibrant—it acts as a reinforced shield. It is engineered to withstand extreme UV radiation, acid rain, and mechanical wear, making it the premier choice for sustainable modern construction and high-end industrial design.


Technical Specifications & Parameters

We offer various coating systems (PE, HDP, PVDF) tailored to different environmental stress levels.

Feature Technical Data
Base Metal Type Hot-Dip Galvanized (GI)
Grade CGCC, TDC51D, S280GD, S550GD
Standards JIS G3312, ASTM A755, EN 10169
Thickness 0.12 mm - 1.2 mm
Width 600 mm - 1250 mm
Top Coating 20 μm - 30 μm (Customizable)
Back Coating 5 μm - 12 μm (Epoxy/Polyester)
Color Options Full RAL Series / Wood, Brick, Camouflage Patterns
Gloss Level High Gloss (>75), Semi-Gloss (35-65), Matte (<10)
T-Bend ≤ 2T (Excellent coating flexibility)

Surface Treatment & Color
  • Vibrant Aesthetics: Utilizing high-stability pigments, our colors remain vivid for 10-25 years.
  • Textured Finishes: Available in Wrinkle/Matte (suede-like), Embossed, and Printed finishes for architectural distinction.
  • Protective Film: A 30-50 micron PE film can be applied to ensure zero scratches during roll-forming and installation.

Why ColorMaster™ PPGI Stands Out
  1. Superior Flexibility: The coating is specially formulated to stretch during bending and stamping without micro-cracking, preserving the integrity of the corrosion barrier.
  2. Advanced Paint Systems:
    • PE (Polyester): Cost-effective, suitable for general environments.
    • PVDF (Fluorocarbon): Ultimate resistance to UV and chemicals; ideal for coastal or high-pollution areas.
    • HDP (High Durability Polyester): Enhanced weather resistance with a 15-year warranty.
  3. Anti-Corrosive Primer: Our high-quality primer ensures that even if the paint is scratched, the zinc layer remains bonded to prevent "creep" or flaking.

Core Applications
  • Architecture: Premium roofing, insulated sandwich panels, wall cladding, and rolling shutter doors.
  • Interior Design: Acoustic ceiling panels, partition walls, and fire-resistant doors.
  • Home Appliances: Decorative panels for refrigerators, air conditioners, and washing machines.
  • Infrastructure: Airport terminals, railway stations, and stadium roofing.

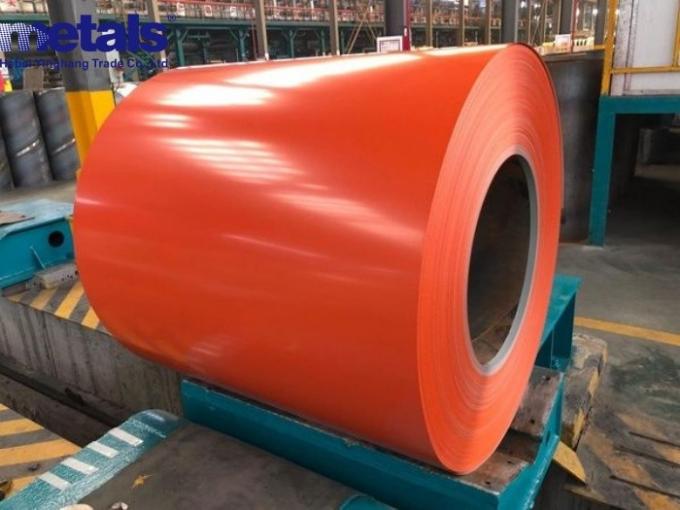

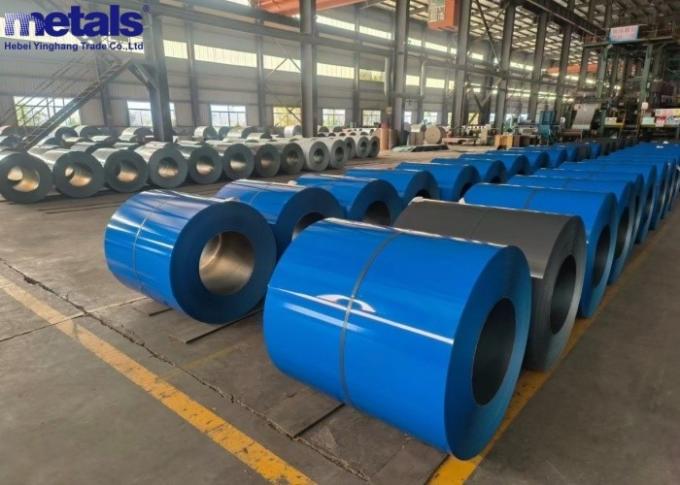

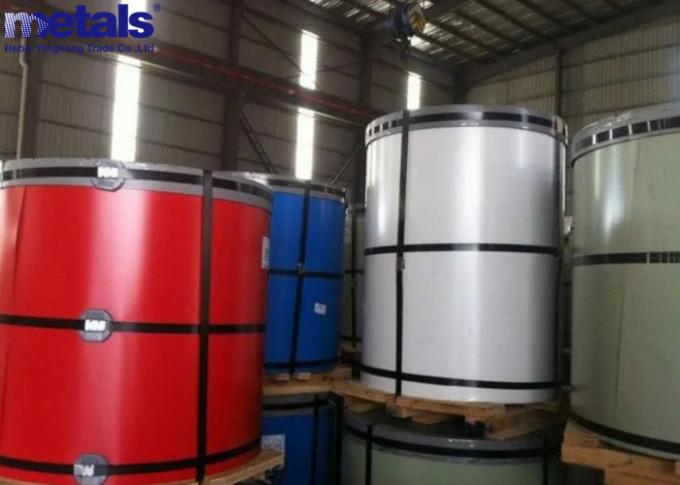

ColorMaster™ PPGI steel coil sample showing vibrant color coating Close-up view of ColorMaster™ PPGI surface texture and finish ColorMaster™ PPGI coils in industrial storage facility
