GI Steel Coil
>
GI Steel Coil Bright Metallic Silver 0.12mm to 2.5mm(Z40 – Z275)

GI Steel Coil Bright Metallic Silver 0.12mm to 2.5mm(Z40 – Z275)

Brand Name: YINGHANG
Model Number: 0.4mm-4mm
MOQ: 25tons
Price: Other
Packaging Details: According To Customers' Requirement
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001 quality certificate
Tolerance:
±1%
Tensile Strength:
270-500N/mm2
Steel Grade:
SPCC
Zinc:
30-180g
Coil Outer Diameter:
1500-1800mm
Origin:
China / Other Manufacturing Countries
Key Words:
GI Steel Coil
Processing Service:
Punching, Cutting
Thicknessrange:
0.12-3.0 Mm
Surface Treatment:
Galvanized
Business Type:
Manufacturer
Coil Width:
600mm-1500mm
Yield Strength:
Min, Regular, Big
Id Of Coil:
508/610MM
Delivery:
7-10 Days
Supply Ability:
1000000 tons per year
Highlight:

GI steel coil bright metallic silver

,

GI steel coil 0.12mm to 2.5mm

,

GI steel coil Z40 to Z275

Product Description
GI Steel Coil Bright Metallic Silver 0.12mm to 2.5mm (Z40 – Z275)
Product Introduction

The ProGuard™ Galvanized Steel Coil represents the gold standard in corrosion-resistant materials. Engineered through the hot-dip galvanizing process, each coil is submerged in a 450°C molten zinc bath, creating a robust metallurgical bond between the zinc and the steel substrate.

This process produces a multi-layered coating that acts as a physical barrier and provides cathodic protection, ensuring the steel remains rust-free even if the surface is compromised.

Our coils are specifically designed for industries requiring a balance of high-tensile strength and superior surface aesthetics. Whether for structural frames or decorative cladding, ProGuard™ provides a maintenance-free solution that lasts decades in even the most humid or saline environments.

Technical Specifications & Parameters

We adhere to strict international quality benchmarks to ensure consistency across every batch.

Feature Technical Data
Material Grades DX51D, DX52D, S250GD, S350GD, S550GD, SGCC, CS-B
Standard Compliance ASTM A653, JIS G3302, EN 10346, AS 1397
Thickness Range 0.12 mm - 4.5 mm
Width Options 600 mm - 1500 mm (Standard: 1000mm, 1200mm, 1250mm)
Zinc Coating Mass 30 g/m² to 275 g/m² (Z30 - Z275)
Surface Finish Regular Spangle / Minimized Spangle / Zero Spangle
Surface Treatment Chromated (Passivated), Oiled, Anti-Fingerprint (AFP)
Coil Inner Diameter 508 mm / 610 mm
Tensile Strength 270 MPa - 600 MPa (Grade dependent)
Visual Appearance & Color

ProGuard™ coils feature a Bright Metallic Silver finish. The cooling process is carefully controlled to produce specific "spangle" patterns:

  • Regular Spangle: A distinct crystalline "flower" pattern, preferred for industrial roofing and outdoor structures.
  • Zero Spangle: A perfectly smooth, matte silver finish. This is the ideal choice for high-end applications where the steel will be painted or powder-coated, as it prevents the crystal pattern from showing through the paint.
Versatile Applications

The durability and formability of GI coils make them indispensable across four primary sectors:

  1. Construction & Infrastructure: Used for high-load applications such as corrugated roofing, wall cladding, floor decking, purlins, and sandwich panels.
  2. HVAC & Ducting: The corrosion resistance against condensation makes it the standard material for air conditioning vents, ventilation pipes, and chimney systems.
  3. Home Appliances: ProGuard™ serves as the internal framework and back-paneling for "white goods," including refrigerators, washing machines, and microwave ovens.
  4. Solar & Energy: Essential for the mounting brackets and frames of solar PV systems, where 25-year outdoor durability is a mandatory requirement.
Why Choose ProGuard™?

Our GI coils undergo a rigorous 180° Cold Bend Test, ensuring the coating never peels or cracks during fabrication. With Self-Healing Properties, the zinc layer naturally migrates to cover small scratches, preventing the spread of oxidation.

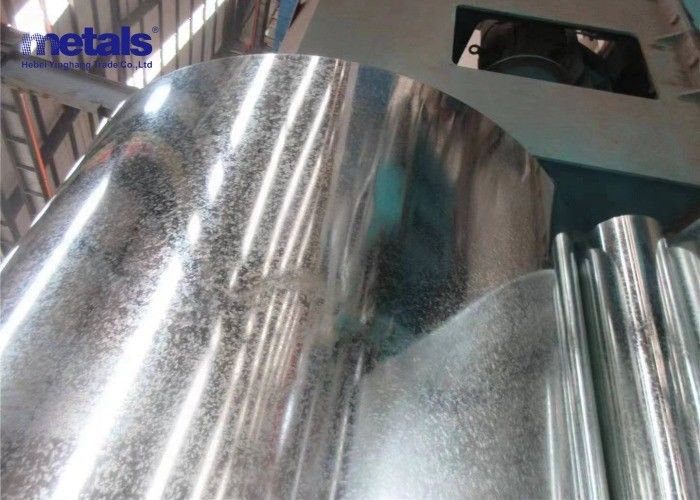

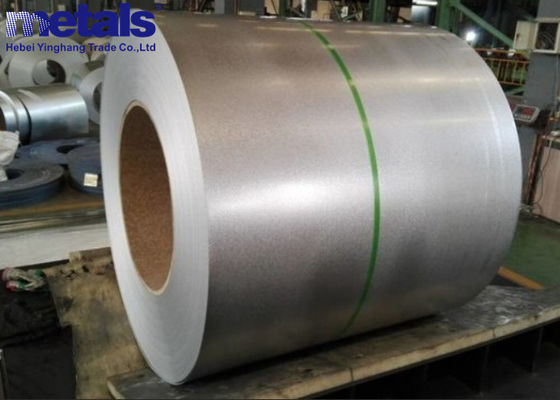

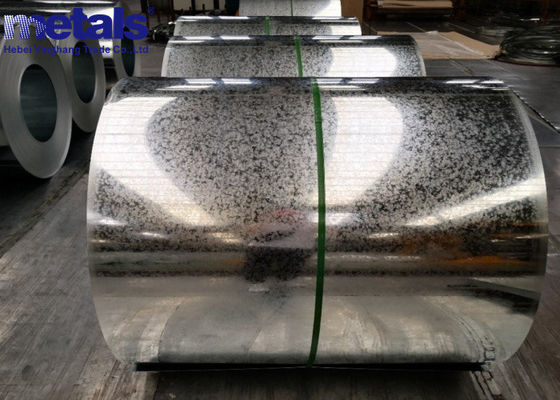

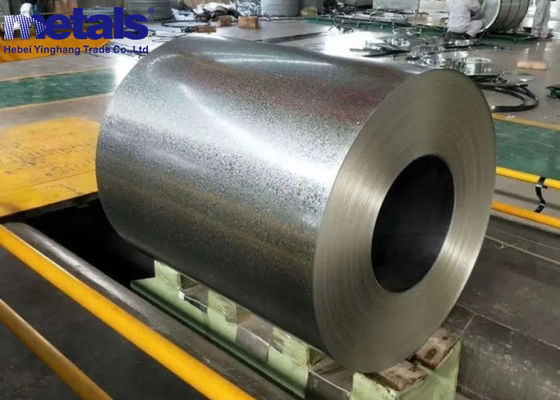

ProGuard™ Galvanized Steel Coil showing metallic silver finish and spangle pattern GI Steel Coil Bright Metallic Silver 0.12mm to 2.5mm(Z40 – Z275) 1 Industrial application of ProGuard™ steel coil in construction
