Galvalume Steel Coils

0.23mm x 1219mm Galvalume Steel Coil AZ30g 55% AL-ZN Coated

All Category

Steel Piles

Mrs. Sarah Wang

sales02@hbyinghang.com

+8615032862527

Contact Now

0.23mm x 1219mm Galvalume Steel Coil AZ30g 55% AL-ZN Coated

Brand Name:	YINGHANG
Model Number:	0.12mm-6.0mm
MOQ:	28Tons
Price:	USD500-800/T
Packaging Details:	Export packaging
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Product Name:

Galvalume Steel Coil

Thickness:

0.12mm-6.00mm

Width:

600mm-1500mm

Length:

1m-12m, Support Customization

Standard:

AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,ETC

Content Of AL-ZN Coating:

AL:55%,Zn:43.5%,Si：1.5%

Supply Ability:

15000Tons per monthly

Highlight:

1219mm Galvalume Coils

55% AL-ZN Galvalume Coils

0.23mm Galvalume Coils

Product Description

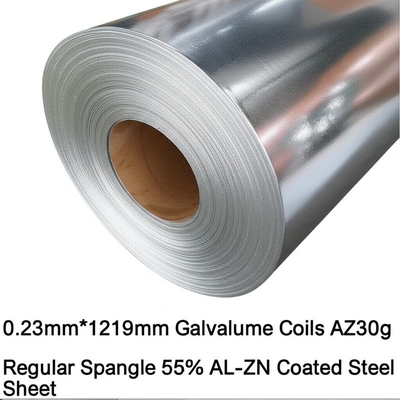

0.23mm*1219mm Galvalume Coils AZ30g Regular Spangle 55% AL-ZN Coated Steel Sheet

Galvalume Steel Coil Introduction: Galvalume steel coil is based on cold-rolled steel plate, which is solidified by 55% aluminum, 43.4% zinc and 1.6% silicon at 600℃. It combines the physical protection and high durability of aluminum with the electrochemical protection of zinc. Also known as aluminized zinc steel coil.

Production Process:

Uncoiling
Cleaning
Annealing
Zinc pot
Cooling
Air knife
Straightening
Post-treatment
Coiling

Key Features:

Heat Reflection: Thermal reflectivity is up to twice that of galvanized steel
Heat Resistance: Can withstand high temperatures above 300°C
Corrosion Resistance: Aluminum forms a protective oxide layer preventing further corrosion
Economy: 3% larger coverage area than galvanized steel at same weight
Easy to Paint: Excellent coating adhesion without pretreatment

Galvalume Steel Coil Materials

Project	Classification	Symbol
Type of coating	Aluminum-zinc Alloy	AZ
Surface finish	Conventional sequins	R
	Minimize Sequins	M
	Skin through	S
Surface treatment	Chromate Passivation	C
	Non-chromate passivation	C5
	Chromate Passivationoiling	CO
	Chromium-free Passivationoiling	CO5
	Anti-fingerprint	N
	Chromate-free/Anti-fingerprint	N5
	No chromate high weather resistance fingerprint	NW
	Oil filling	O
	No treatment	U

Applications

Construction Industry: Roof, wall panels, sound insulation walls, pipes, garages
Automotive Industry: Mufflers, exhaust pipes, fuel tanks, truck containers
Household Appliances: Refrigerator backplates, air conditioners, microwave ovens
Agricultural Use: Greenhouses, granaries, livestock housing
Other Industries: Heat exchangers, dryers

Packing
