Galvanized Steel CBT-65 Barbed Concertina Wire Coil

Brand Name:	YINGHANG
Model Number:	BTO22 CBT65
MOQ:	5 TONS
Price:	USD500-800/T
Packaging Details:	WEAVING BAG,CARTON
Payment Terms:	L/C,T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Prodcuts Name:

Galvanized Steel Barbed Concertina Wire Coil CBT-65 Razor Barbed Wire

Keyword:

Barbed Concertina Wire

Application:

Military, Prison, Border Security

Type:

BTO-22,CBT65,CBT60

Material:

Galvanized Steel

Barb Length:

12-65mm

Barb Spacing:

26-100mm

Coil Diameter:

450mm

Supply Ability:

1000tons one month

Highlight:

CBT-65 Galvanized barbed concertina wire

Razor CBT-65 barbed concertina wire

CBT-65 Galvanized concertina barbed wire

Product Description

Galvanized Steel Coil CBT-65 Barbed Concertina Wire Razor

Product Specifications

Attribute	Value
Products Name	Galvanized Steel Barbed Concertina Wire Coil CBT-65 Razor Barbed Wire
Application	Military, Prison, Border Security
Type	BTO-22, CBT65, CBT60
Material	Galvanized Steel
Barb Length	12-65mm
Barb Spacing	26-100mm
Coil Diameter	450mm

Product Description

Galvanized Steel Barbed Concertina Wire Coil CBT-65 Razor Barbed Wire is a modern security fencing material designed as a perimeter deterrent with piercing and cutting razor blades mounted at the top of walls. The galvanized coating provides excellent protection against corrosion and oxidation, while its high resistance allows for greater spacing between fencing posts.

Technical Specifications

Model	Thickness	Wire Diameter	Length	Width	Spacing
BTO-10	0.5±0.05mm	2.5±0.1mm	12±1mm	13mm	26mm
BTO-12	0.5±0.05mm	2.5±0.1mm	12±1mm	15mm	26mm
BTO-18	0.5±0.05mm	2.5±0.1mm	18±1mm	15mm	33mm
BTO-22	0.5±0.05mm	2.5±0.1mm	22±1mm	15mm	34mm
BTO-28	0.5±0.05mm	2.5±0.1mm	28±1mm	15mm	34mm
BTO-30	0.5±0.05mm	2.5±0.1mm	30±1mm	18mm	34mm
CBT-60	0.6±0.05mm	2.5±0.1mm	60±1mm	32mm	96mm
CBT-65	0.6±0.05mm	2.5±0.1mm	65±1mm	21mm	100mm

Coil Specifications

Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450 mm	33	8m	CBT-65	Single coil
500 mm	41	10m	CBT-65	Single coil
700 mm	41	10m	CBT-65	Single coil
960 mm	53	13m	CBT-65	Single coil
500 mm	102	16m	BTO-10.15.22	Cross type
600 mm	86	14m	BTO-10.15.22	Cross type
700 mm	72	12m	BTO-10.15.22	Cross type
800 mm	64	10m	BTO-10.15.22	Cross type
960 mm	52	9m	BTO-10.15.22	Cross type

Key Features

Beautiful and sharp blades with strong core wire
Excellent deterrent effects with nice appearance
Easy installation and economical practicality
Galvanized coating for corrosion resistance
High strength allows wider post spacing

Applications

This razor barbed wire is widely used in apartment buildings, organizational units, prisons, frontier fences, military fields, and other sites requiring high-security fencing.

Classification

Available in concertina coils, straight type razor wire, crossed type, and flat type according to installation requirements.

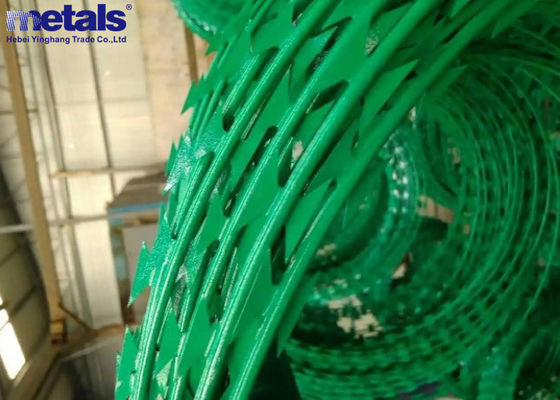

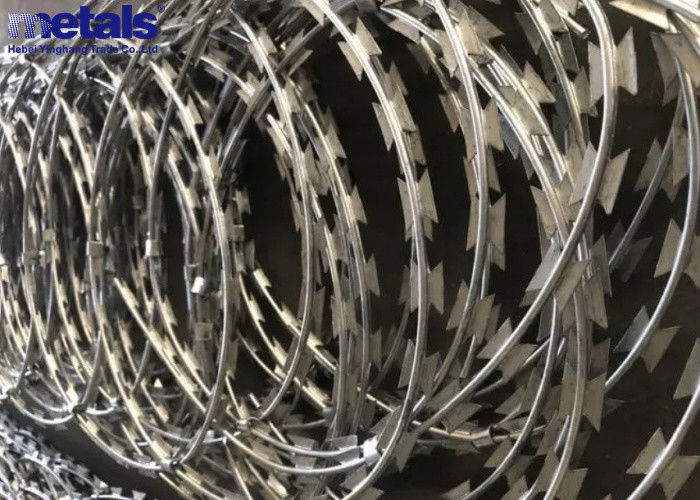

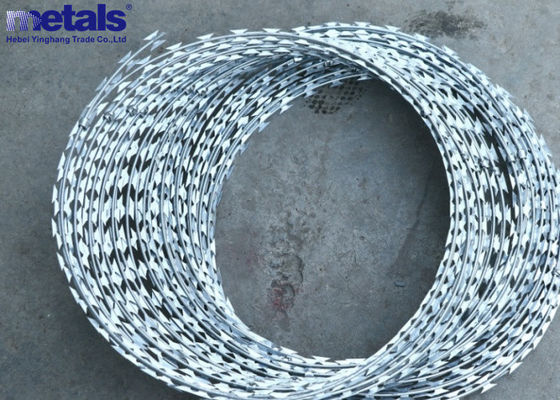

Product Images
