Wire Mesh Fence

3D Curved Welded Wire Mesh Fence Galvanized PVC Coated 50X100MM

All Category

Steel Piles

Mrs. Michelle Zhang

michelle@hbyinghang.com

+8613582361243

+8613582361243

Contact Now

3D Curved Welded Wire Mesh Fence Galvanized PVC Coated 50X100MM

Brand Name:	YINGHANG
Model Number:	50X100MM
MOQ:	500 pcs
Price:	USD5-50/Rroll
Packaging Details:	Standard export package or customized
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

3D Curved Welded Wire Mesh Fence With Different Post Types For Various Applications

Key Words:

Wire Mesh Fence

Surface Treatment:

Galvanized+PVC Coated,hot Dipped

Width:

0.5m - 4m

Color:

Yellow,Green,blue,black

Wire Diameter:

3.5mm Etc

Feature:

Easily Assembled,Waterproof

Post:

Square,round Tube

Application:

Garden Fence,roads

Length:

50-100M

Supply Ability:

10000 pcs one month

Highlight:

50X100MM 3d mesh fence

Different Post 3d mesh fence

3.5mm 3d mesh fence

Product Description

3.5mm 50X100MM Different Post Types 3D Mesh Fence For Various Applications

Product Specifications

Product Name	3D Curved Welded Wire Mesh Fence With Different Post Types For Various Applications
Surface Treatment	Galvanized+PVC Coated, Hot Dipped
Width	0.5m - 4m
Color Options	Yellow, Green, Blue, Black
Wire Diameter	3.5mm etc
Key Features	Easily Assembled, Waterproof
Post Types	Square, Round Tube
Applications	Garden Fence, Roads
Length	50-100M

Product Description

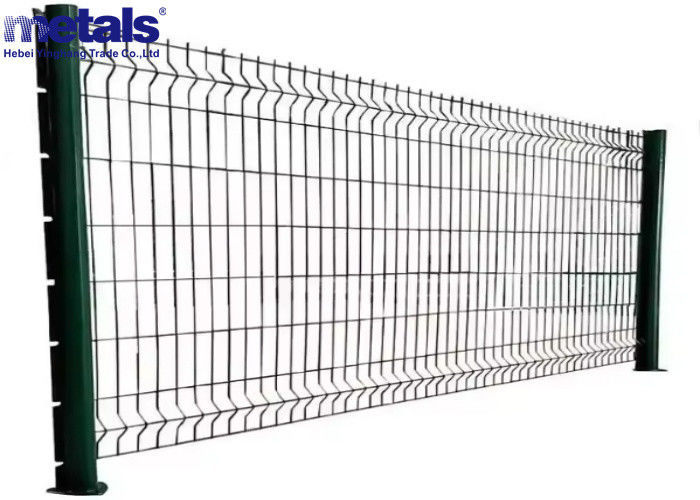

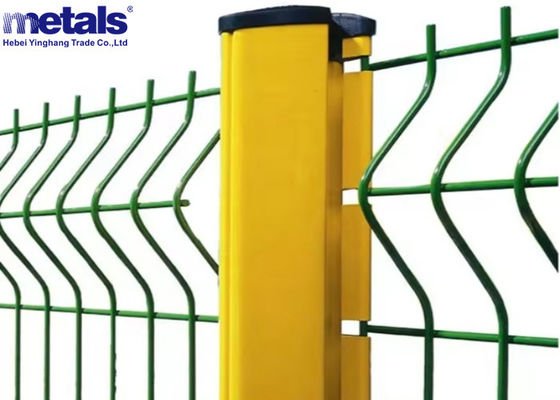

3D Fence Panel is a fence panel made of superior quality welded mesh, folded into one or more "V" shape curves horizontally to create a 3D format. Available in various styles from ornamental to utilitarian, suitable for applications ranging from privacy fencing to animal containment.

This welded mesh fence is formed by iron wire, electronic galvanized wire, or hot dipped galvanized wire, joined together through welding and then bent into suitable angles. Additional processes include powder coating or PVC coating for enhanced durability.

Technical Specifications

Material: Low carbon steel wire or galvanized wire
Wire diameter: 3mm to 8mm
Mesh size: 50mm × 100mm, 50mm × 150mm, 50mm × 200mm, 75mm × 150mm, 75mm × 200mm
Panel height: 0.63m to 2.43m (special sizes 3.5m to 4m available)
Panel length: 2m to 3m
Curve quantity: 2, 3 or 4

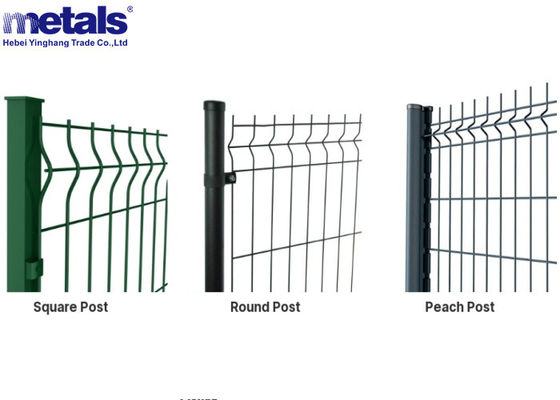

Post types: Peach post, square post, rectangular post, round post

Surface Treatment Options

Mild steel wire welding with hot dipped galvanized finish
Mild steel wire welding with PVC coating
Mild steel wire welding with powder coating
Galvanized steel wire welding with PVC coating
Galvanized steel wire welding with powder coating

Standard Dimensions

Wire Dia.	Mesh Size	Panel Width	Panel Height	Fold No.	Post Height	Post Model
4.0mm - 6.0mm	200×50mm to 200×65mm	2.0m - 3.0m	830mm - 2530mm	2 - 5	900mm - 2600mm	Square post, Peach post, Round post, Holland post

Key Features

High strength construction
Corrosion and rust resistance
Excellent weather resistance
Multiple color options available
Durable with long service life
Flexible installation options
Suitable for various environments
Effective security barrier
