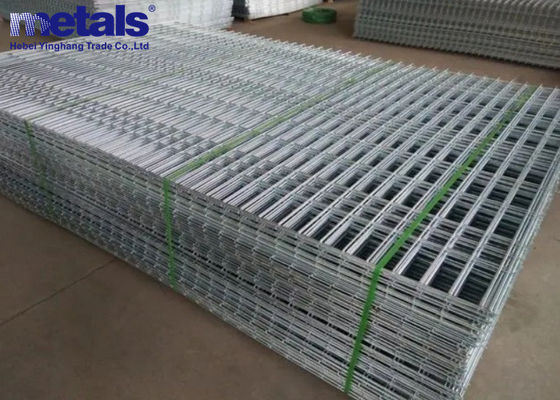

2x2 Galvanized Welded Wire Mesh Panel for Construction and Fencing

All Category

Steel Piles

Mrs. Michelle Zhang

michelle@hbyinghang.com

+8613582361243

+8613582361243

Contact Now

2x2 Galvanized Welded Wire Mesh Panel for Construction and Fencing

Brand Name:	YINGHANG
Model Number:	2x2
MOQ:	100 pcs
Price:	USD5-50/Rroll
Packaging Details:	waterproof paper and plastic film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

SGS

Product Name:

2x2 Galvanized Welded Wire Mesh Panel For Corrosion Resistance

Keyword:

Welded Wire Mesh

Application:

Construction Wire Mesh,Fence Mesh,bridge

Wire Gauge:

BWG#12--#26

Hole Shape:

Square,Rectangle,long Hole

Width:

0.5m To 2.2m

Packing:

Waterproof Paper,Pallet

Wire Diameter:

1.0mm~4.50mm

Supply Ability:

10000 rolls per week

Highlight:

2x2 galvanized welded wire mesh panel

corrosion resistance 2x2 welded wire mesh

Product Description

2x2 Galvanized Welded Wire Mesh Panel For Corrosion Resistance

Product Specifications

Attribute	Value
Product Name	2x2 Galvanized Welded Wire Mesh Panel For Corrosion Resistance
Application	Construction Wire Mesh, Fence Mesh, bridge
Wire Gauge	BWG#12--#26
Hole shape	Square, Rectangle, long hole
Width	0.5m to 2.2m
Packing	Waterproof Paper, Pallet
Wire diameter	1.0mm~4.50mm

Product Description

Our welded wire mesh panels are manufactured from high-quality steel wire using automated processes and precision welding techniques. The horizontal and vertical wire arrangement creates a strong, durable, and flat structure with exceptional stability.

Applications: Widely used in industrial, agricultural, construction, transportation, and mining sectors. Common uses include machine enclosures, animal pens, window guards, passageway barriers, poultry cages, and various baskets for home and office use. In construction, it serves as an ideal material for shuttering mesh and partition walls in high-rise buildings.

Material: Low carbon steel wire
Standard roll length: 30 m
Roll width: 0.5-1.8 m
Wire gauge: 12 G to 21 G
Aperture: 1/2" - 4"
Types available: Welded mesh roll and welded mesh panel

Available Styles

Electro or Hot dipped galvanized (before or after welding)
Stainless steel wire welded mesh

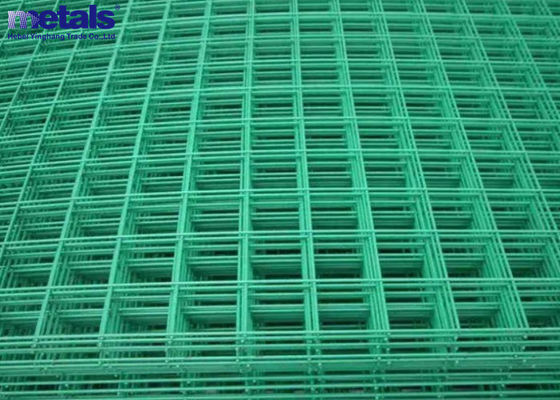

PVC coated galvanized welded mesh

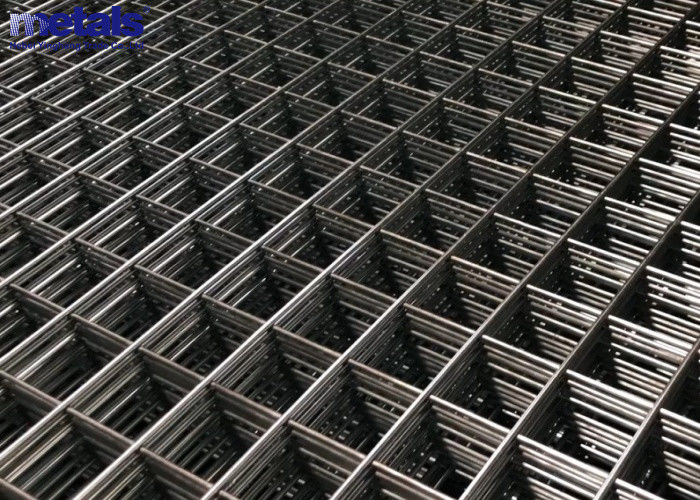

Black wire/uncoated welded mesh

Technical Specifications

Opening	Wire Diameter
1" × 1" (25mmx25mm)	BWG 14# - 11# (2.0mm - 3mm)
2" × 1" (50mmx25mm)	BWG 14# - 8# (2.0mm - 4mm)
2" × 2" (50mmx50mm)	BWG 14# - 8# (2.0mm - 4mm)
3" × 2" (75mmx50mm)	BWG 14# - 6# (2.0mm - 5mm)
3" × 3" (75mmx75mm)	BWG 14# - 6# (2.0mm - 5mm)
4" × 2" (100mmx50mm)	BWG 14# - 4# (2.0mm - 6mm)
4" × 4" (100mmx100mm)	BWG 14# - 4# (2.0mm - 6mm)
5" × 5" (125mmx125mm)	BWG 14# - 4# (2.0mm - 6mm)
6" × 6" (150mmx150mm)	BWG 14# - 4# (2.0mm - 6mm)

Material: Low carbon steel wire

Surface treatment: Electro Galvanized, Hot dipped galvanized, PVC coated, Powder coated

Note: Custom sizes and specifications available upon request.

Key Features and Benefits

Excellent corrosion and rust resistance
Simple installation process
"V" braces for enhanced structural strength
Discreet appearance that blends with surroundings
Cost-effective solution
Long service life

Packaging Options

Waterproof paper and plastic film with label
Waterproof paper and shrink plastic film with label
Custom packaging solutions available
