Hot Rolled Carbon Steel U/Z Sheet Pile for Retaining Walls

Brand Name:	YINGHANG
Model Number:	40010010.5mm
MOQ:	25tons
Price:	USD500-800/T
Packaging Details:	Standard export package or customized
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Carbon Steel U / Z Type Steel Sheet Pile For Construction Water Retaining Wall

Key Word:

Hot Rolled Steel Sheet Pile

Material:

SY295/SY390/Q345B

Length:

6/9/12m

Standard:

GB,JIS,ASTM,AISI,BS

Technique:

Hot Rolled

Shape:

U Shape Or Z Shape

Application:

Construction

Thickness:

3-24mm

Width:

400mm

Supply Ability:

10000tons one month

Highlight:

Retaining Wall Steel Piles

Construction Steel Piles

Construction z sheet pile

Product Description

Carbon Steel U/Z Type Sheet Piles for Construction Water Retaining Walls

Product Specifications

Product Name	Carbon Steel U/Z Type Steel Sheet Pile
Material	SY295/SY390/Q345B
Length	6/9/12m
Standard	GB, JIS, ASTM, AISI, BS
Technique	Hot Rolled
Shape	U shape or Z shape
Application	Construction
Thickness	3-24mm
Width	400mm

Product Description

Steel sheet piles are structural steel sections with interlocking edges, available in straight, U-shaped, or Z-shaped cross-sections. These piles come in various sizes and interlocking configurations, including Larsen and Lakwana types. Their superior strength allows penetration into hard soil layers, while their waterproof properties make them ideal for water retention applications.

Technical Specifications

Grade	S275, S355, S390, S430, SY295, SY390, Grade50, Grade55, Grade60, A690
Standard	EN10249, EN10248, JIS A 5523, JIS A 5528, ASTM A328/ASTM A328M
Length	6m, 12m (custom lengths available for large quantities)
Width	400-750mm (customizable)
Thickness	6-25mm
Shape	U-shaped and Z-shaped

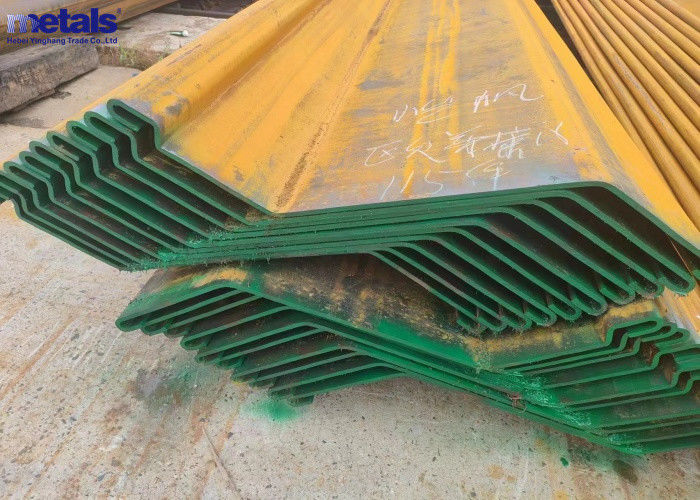

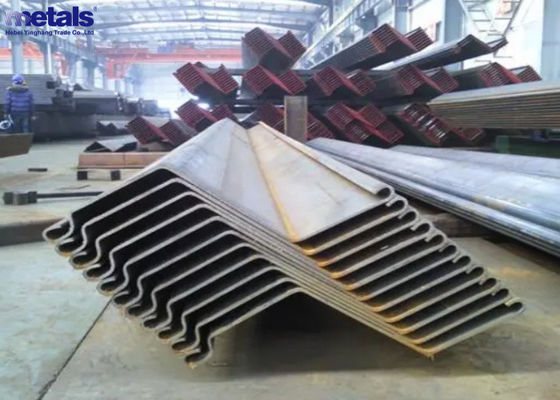

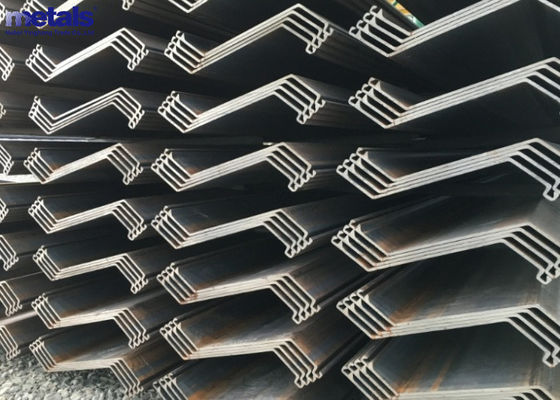

Z-Type Steel Sheet Pile Specifications

Z-type sheet piles offer a higher section modulus with lower material weight compared to U-type piles, providing significant cost savings. Their design allows for easier installation as the flanges align perfectly for waling beam attachment.

Specification	Width (mm)	Height (mm)	Thick t (mm)	Thick s (mm)	Weight (kg/m)
SPZ12	700	314	8.5	8.5	67.7
SPZ13	700	315	9.5	9.5	74
SPZ14	700	316	10.5	10.5	80.3
SPZ17	700	420	8.5	8.5	73.1
SPZ18	700	418	9.10	9.10	76.9
SPZ19	700	421	9.5	9.5	80.0
SPZ20	700	421	10.0	10.0	83.5
SPZ24	700	459	11.2	11.2	95.7
SPZ26	700	459	12.3	12.3	103.3
SPZ28	700	461	13.2	13.2	110.0
SPZ36	700	499	15.0	11.2	118.6
SPZ38	700	500	16.0	12.2	126.4
SPZ25	630	426	12.0	11.2	91.5
SPZ48	580	481	19.1	15.1	140.2

Z-Type Steel Sheet Pile Advantages

Flexible design with high section modulus to mass ratio
Increased wall stiffness reduces displacement and deformation
Wider sections save hoisting and piling time
Enhanced water stop performance with increased section width
Superior corrosion resistance

Applications

Structural support for underground wall enclosures and basements
Excavation zones, underground structures, and ship harbors
Sustainable option with reusable recycled steel piles
Available in various sizes and weights for specific project needs
Effective barrier against soil loss and sloughing at excavation sites
