Welded Wire Mesh
>
Plastic PVC Coated Wire Mesh Welded Galvanised Mesh Panels 1/2"-4" For Outdoor Fence

Plastic PVC Coated Wire Mesh Welded Galvanised Mesh Panels 1/2"-4" For Outdoor Fence

Brand Name: YINGHANG
Model Number: 1/2" -4"
MOQ: 100 ROLLS
Price: According to the market and size
Packaging Details: waterproof paper and plastic film
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
CHINA
Certification:
SGS
Product Name:
PVC Plastic Coated Welded Wire 1/2"-4" Use For Outdoor Fence And Pet Cage
Keyword:
PVC Coated Welded Wire Mesh
Application:
Construction Wire Mesh,Fence Mesh,garden Fence
Wire Gauge:
0.3-2.5mm
Color:
Green, Blue, Yellow, Black,Red Ect.
Width:
0.5-2m
Surface Treatment:
Galvanized/pvc Coated
Packing:
In Roll
Feature:
Anti-rust,Anti-corrosion
Aperture:
1/4"-6"
Material:
Low-Carbon Iron Wire
Length:
10-50m
Supply Ability:
10000 rolls per week
Highlight:

Plastic pvc coated wire mesh

,

Outdoor pvc coated wire mesh

,

Welded galvanised mesh panels

Product Description

PVC Plastic Coated Welded Wire 1/2"-4" Use For Outdoor Fence And Pet Cage





PVC coated welded mesh with plastic covering is constructed with galvanized iron wire of high quality. It has PVC powder covering that is processed by an automatic machine. The smooth plastic coating on this corrosion protective wire is attached with a strong adhesive which make increases durability of the wire. It is used in fencing residential and official properties like gardens, parks, building. The PVC coated welded mesh which is available as both rolls and panels, is also available in different colors like white, black, green.The inner materials wire of PVC coated welded wire mesh panels or rolls has steel wire, hot dipped galvanized wire, electro galvanized wire and low carbon steel wire. with a breakthrough coating process. The finished PVC coated welded wire mesh can have high corrosion resistance. Galvanized welded mesh is coated with a thick layer of PVC which is tightly bonded to the wire by a heat process. They have double protection. Not only does the vinyl coating seal the wire from water and other corrosive elements, but the underlying mesh is also protected by a zinc coating.



PVC Coated Welded Wire Mesh Materials and Specifications:



Materials: Low-carbon steel wire, PVC wire

Product Name: PVC Coated Welded Wire Mesh, PVC Coated Wire Mesh

Manufacturing Process: Precision weaving of black iron wire or galvanized wire

Key Features: Strong adhesion, excellent corrosion resistance

Specifications: Refer to the PVC Coated Welded Wire Mesh Inventory Specifications Table

Custom specifications are available upon request.



Mesh Opening Wire Thickness Width
Inch MM MM Inch M
1/4 x 1/4 6 x 6 0.45/0.80 -0.60/1.00 12-48 0.3-1.2
3/8 x 3/8 10 x 10 0.45/0.80 - 0.80/1.20 12-48 0.3-1.2
1/2 x 1/2 13 x 13 0.50/0.85 - 1.20/1.60 12-80 0.3-2.0
5/8 x 5/8 16 x 16 0.55/0.90 - 1.20/1.60 12-48 0.3-1.2
3/4 x 3/4 19 x 19 0.55/0.90 - 1.20/1.60 12-80 0.3-2.0
1/2 x 1 13 x 25 0.55/0.90 - 1.20/1.60 12-80 0.3-2.0
1 x 1 25 x 25 0.60/1.00 - 1.60/2.00 12-80 0.3-2.0
1-1/4 x 1-1/4 30 x 30 0.60/1.00 - 1.60/2.00 12-80 0.3-2.0
1-1/2 x 1-1/2 40 x 40 0.90/1.30 - 1.60/2.00 12-80 0.3-2.0
1 x 2 25 x 50 1.00/1.40 - 2.20/2.60 12-80 0.3-2.0
2 x 2 50 x 50 1.20/1.60 - 2.20/2.60 12-80 0.3-2.0
2 x 3 50 x 75 1.60/2.00 - 2.20/2.60 12-80 0.3-2.0
2 x 4 50 x 100 1.60/2.00 - 2.20/2.60 12-80 0.3-2.0
3 x 3 75 x 75 1.60/2.00 - 2.20/2.60 12-80 0.3-2.0
3 x 4 75 x 100 1.60/2.00 - 2.20/2.60 12-80 0.3-2.0
4 x 4 100 x 100 1.60/2.00 - 2.20/2.60 12-80 0.3-2.0





PVC Coated Welded Wire Mesh Feature:

  • Coating on welded wire can handle intensive use without stripping or peeling.
  • Protective PVC coating makes PVC wire last many years longer than an not coated wir .
  • Colors are green, black, yellow and blue ; custom colors available.

PVC Coated Welded Wire Mesh Application :

PVC-coated welded wire mesh serves as guards in buildings and factories, as animal enclosures and as wire mesh fences in agriculture; welded wire mesh also serves in the horticulture industry as guards for trees and plants. It is trendy in the breeding industry and can be made into various animal cages or fences for breeding, with its excellent anti-corrosion property. The PVC coat offers a kind of decorative outlook with its flat surface. Packing and delivery: It can be delivered in sheets or rolls. Packing with water-proof paper, then shrinks the plastic bag. Or according to the customer's requirements.

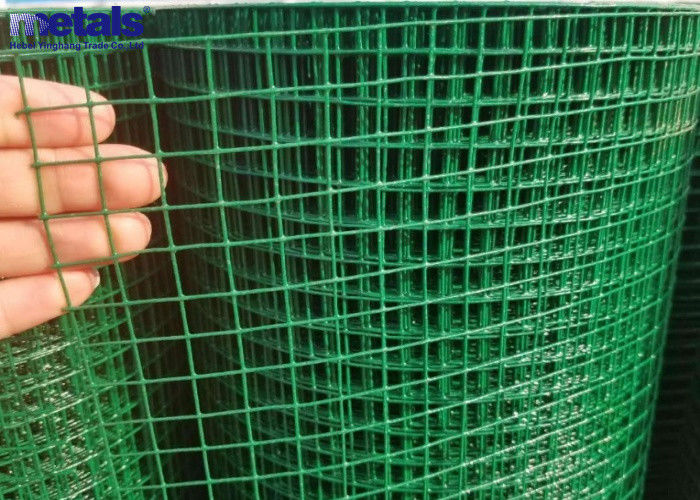

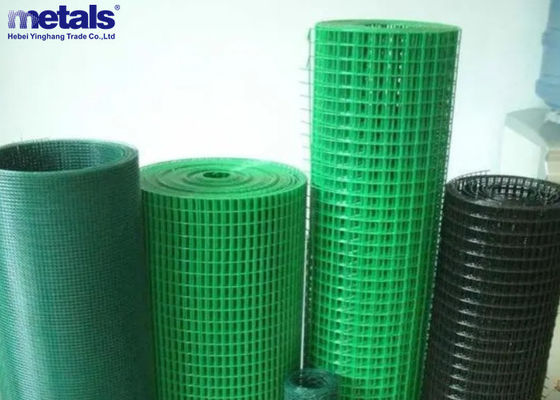

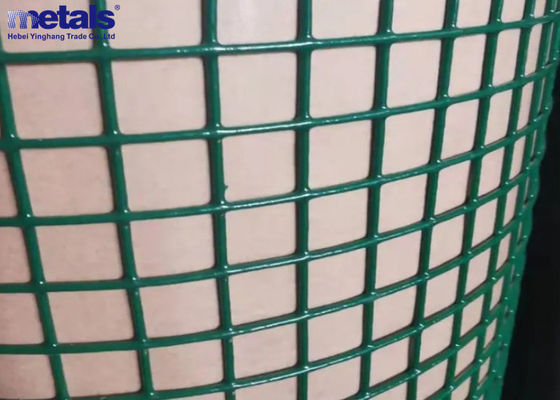

Plastic PVC Coated Wire Mesh Welded Galvanised Mesh Panels 1/2"-4" For Outdoor Fence 0Plastic PVC Coated Wire Mesh Welded Galvanised Mesh Panels 1/2"-4" For Outdoor Fence 1Plastic PVC Coated Wire Mesh Welded Galvanised Mesh Panels 1/2"-4" For Outdoor Fence 2
