Square Hole Galvanized Welded Wire Mesh Panels 3"X100m For Building

All Category

Steel Piles

Mrs. Michelle Zhang

michelle@hbyinghang.com

+8613582361243

+8613582361243

Contact Now

Square Hole Galvanized Welded Wire Mesh Panels 3"X100m For Building

Brand Name:	YINGHANG
Model Number:	1/2"
MOQ:	100 ROLLS
Price:	According to the market and size
Packaging Details:	waterproof paper and plastic film
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

1.2" To 2" Square Hole Galvanized Welded Wire Mesh 3'x100m For Buiding

Keyword:

Welded Wire Mesh

Application:

Construction Wire Mesh,Fence Mesh,bridge

Wire Gauge:

BWG#12--#26

Hole Size:

6.35mm-152.4mm(1/4"- 6" )

Width:

0.5m To 2.2m

Surface Treatment:

Galvanized/pvc Coated

Material:

Galvanized Iron Wire

Length:

30m,50m,10m,5m,25m

Packing:

Waterproof Paper,Pallet

Supply Ability:

10000 rolls per week

Highlight:

Square Hole Welded Wire Mesh

3" Welded Wire Mesh

3" welded mesh panels

Product Description

1.2" To 2" Square Hole Galvanized Welded Wire Mesh 3'X100m For Buiding

Welded wire mesh is made of high quality low carbon steel wire,stainless steel wire.welded wire mesh divides into hot dipped galvanized and electro galvanized.The adoption plates the zinc craft after welding,it is made from high-quality iron wire by automatic equipment .The products have smooth mesh surface ,well-proportioned meshes ,strong welded points and bright luster.The mesh does not come loose even if cut in parts or being exerted force on parts .Compared with general iron wire,the products are better in respects of strong antioxidant, and other anti-corrosion characteristics. Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, stainless steel wire after welding and surface treating. Welded wire mesh fabric is widely used in building construction, protection system, filtration, food, agriculture and so on.welded wire mesh can be divided into 2 types: welded mesh roll and welded mesh panel.

Material: low carbon steel wire.
Standard roll length: 30 m.
Roll width: 0.5–1.8 m.
Wire gauge: 12 G, 13 G, 14 G, 15 G, 16 G, 17 G, 18 G, 19 G, 20 G and 21 G.
Aperture: 1/2" – 4".
Type: welded mesh roll and welded mesh panel.

Welded Wire Mesh Style:

Electro or Hot dipped galvanized after or before welding
Stainless steel wire welded wire mesh
PVC coated galvanized welded wire mesh
Black wire/ no coated welded wire mesh

Galvanized Welded Wire Mesh Specification:

Galvanized Welded Wire Mesh
Mesh Opening		Wire Thickness		Width
Inch	MM	BWG	MM	Inch	M
1/4 x 1/4	6 x 6	26; 25; 24; 23; 22; 21	0.45-0.80	12-48	0.3-1.2
3/8 x 3/8	10 x 10	26; 25; 24; 23; 22; 21; 20; 19	0.45-1.00	12-48	0.3-1.2
1/2 x 1/2	13 x 13	25; 24; 23; 22; 21; 20; 19; 18; 17; 16	0.50-1.65	12-80	0.3-2.0
5/8 x 5/8	16 x 16	25; 24; 23; 22; 21; 20; 19; 18; 17; 16	0.50-1.65	12-48	0.3-1.2
3/4 x 3/4	19 x 19	25; 24; 23; 22; 21; 20; 19; 18; 17; 16	0.50-1.65	12-80	0.3-2.0
1/2 x 1	13 x 25	22; 21; 20; 19; 18; 17; 16; 15; 14	0.70-2.10	12-80	0.3-2.0
1 x 1	25 x 25	22; 21; 20; 19; 18; 17; 16; 15; 14	0.70-2.10	12-80	0.3-2.0
1-1/4 x 1-1/4	30 x 30	20; 19; 18; 17; 16; 15; 14; 13; 12	0.90-2.80	12-80	0.3-2.0
1-1/2 x 1-1/2	40 x 40	20; 19; 18; 17; 16; 15; 14; 13; 12	0.90-2.80	12-80	0.3-2.0
1 x 2	25 x 50	19; 18; 17; 16; 15; 14; 13; 12	1.00-2.80	12-80	0.3-2.0
2 x 2	50 x 50	18; 17; 16; 15; 14; 13; 12	1.20-2.80	12-80	0.3-2.0
2 x 3	50 x 75	16; 15; 14; 13; 12	1.60-2.80	12-80	0.3-2.0
2 x 4	50 x 100	16; 15; 14; 13; 12	1.60-2.80	12-80	0.3-2.0
3 x 3	75 x 75	16; 15; 14; 13; 12	1.60-2.80	12-80	0.3-2.0
3 x 4	75 x 100	16; 15; 14; 13; 12	1.60-2.80	12-80	0.3-2.0
4 x 4	100 x 100	16; 15; 14; 13; 12	1.60-2.80	12-80	0.3-2.0
6 x 6	150 x 150	16; 15; 14; 13; 12	1.60-2.80	12-80	0.3-2.0

Galvanized Welded Wire Mesh Features and Benefits:

Anti-corrosion and anti-rust.
Easy to install.
"V" braces for extra strength.
Blends with the landscape.
Competitive price.
Long lasting.

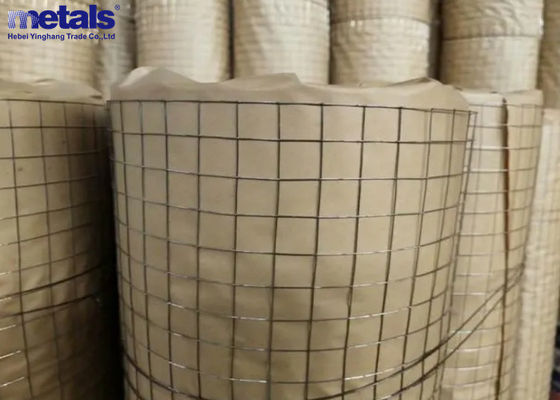

Galvanized Welded Wire Mesh Packing:

Waterproof Paper And Plastic film,lable
Waterproof paper and shrink plastic film,lable
Customize other packing.

Square Hole Galvanized Welded Wire Mesh Panels 3"X100m For Building 0
