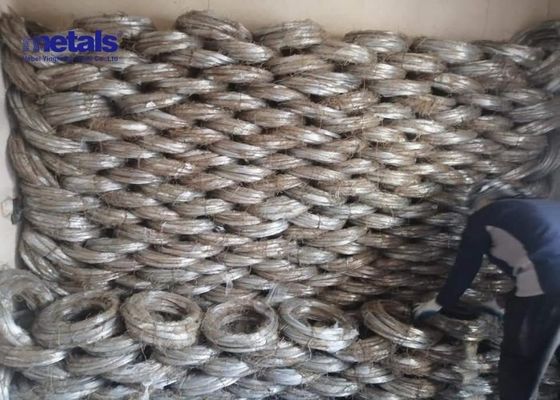

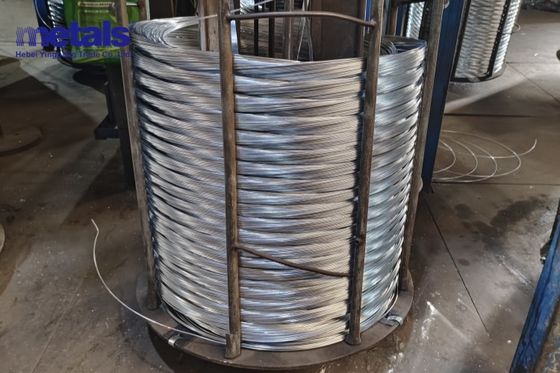

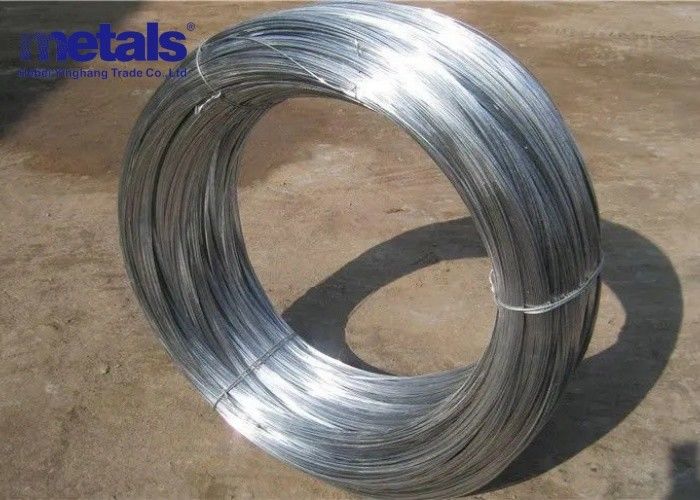

Hot Dip Galvanized Steel Wire 12 Gauge for Construction Fencing

Brand Name:	Yinghang
Model Number:	GIwire3
MOQ:	25 tons per size
Price:	USD500-800/T
Packaging Details:	According To Customers' Requirement
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS ISO

Product Name:

Hot Dip Galvanized Steel Wire

Steel Grade:

Carbon Steel

Application:

Construction, Binding, Fencing, Etc.

Delivery:

7-8 Days For 300tons

Packing:

Coil, Spool, Or Cut Length

Tensile:

30-50kg/mm2

Process Method:

Electro/hot Dipped Galvanized

Tensile Stength:

330-550N/mm2

Usage:

Used In Weaving Of Wire Mesh, Fencing For Expressway And Construction

Zinc Weight:

10-320g/m2

Supply Ability:

1000000 tons per year

Highlight:

Zinc Galvanized Iron Wire

OEM Galvanized Iron Wire

OEM 12 gauge galvanized wire

Product Description

OEM GI Galvanized Iron Wire Hot Dipped Zinc 12 Gauge

Product Specifications

Attribute	Value
Product Name	Hot Dip Galvanized Steel Wire
Steel Grade	Carbon Steel
Application	Construction, Binding, Fencing
Delivery	7-8 days for 300 tons

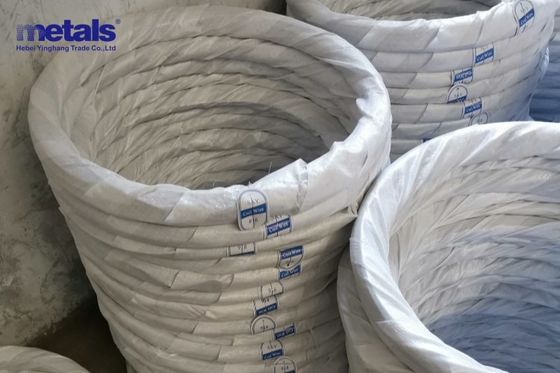

Packing	Coil, Spool, or Cut Length
Tensile Strength	30-50kg/mm² (330-550N/mm²)
Process Method	Electro/Hot Dipped Galvanized
Usage	Wire mesh weaving, expressway fencing, construction
Zinc Weight	10-320g/m²

Product Description

Our hot-dip galvanized steel wire is immersed in heated zinc solution, creating a thick, durable coating (30-300 microns) that provides exceptional corrosion resistance. This process yields a product that lasts for decades in outdoor environments, making it ideal for demanding industrial applications.

Compared to electro-galvanized wire (5-30 micron coating), our hot-dip galvanized wire offers superior protection with its thicker zinc layer, though it has a slightly darker appearance. The production process is faster and more efficient, resulting in a cost-effective solution for long-term use.

Wire Gauge Comparison

Wire Gauge	SWG	BWG	AWG
	in	mm	in	mm	in	mm
3	0.252	6.401	0.259	6.58	0.2294	5.83
4	0.232	5.893	0.238	6.05	0.2043	5.19
5	0.212	5.385	0.22	5.59	0.1819	4.62
6	0.192	4.877	0.203	5.16	0.162	4.11
7	0.176	4.47	0.18	4.57	0.1443	3.67
8	0.16	4.064	0.165	4.19	0.1285	3.26
9	0.144	3.658	0.148	3.76	0.1144	2.91
10	0.128	3.251	0.134	3.4	0.1019	2.59
11	0.116	2.946	0.12	3.05	0.09074	2.3
12	0.104	2.642	0.109	2.77	0.08081	2.05

Applications

With its superior protective coating, our hot-dip galvanized steel wire is ideal for:

Chemical equipment and petroleum processing
Marine exploration and offshore applications
Power transmission infrastructure
Shipbuilding and marine structures
Highway guardrails and safety fencing
Construction reinforcement and wire mesh

Key Features

Excellent toughness and elasticity for demanding applications
Thick galvanized layer (40-300μm) for superior corrosion resistance
High wear resistance and durability
Zinc coating remains intact in wet environments
Long service life - decades of protection in outdoor conditions

Tags:
