products details

Home > Products >

Galvanized Iron Wire

Z20-30g Electro 12 Gauge Galvanized Wire Binding Steel For Construction BWG22

All Category

Steel Piles

Mrs. Joanna jiang

joanna@hbyinghang.com

+8615632328683

+8615632328683

Contact Now

Z20-30g Electro 12 Gauge Galvanized Wire Binding Steel For Construction BWG22

Brand Name:	YINGHANG
Model Number:	0.71MM
MOQ:	5 tons
Price:	Price Negotiation
Packaging Details:	Plastic inside, outside hessian or naylon woven
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Products Name:

Galvanized Iron Wire

Keyword:

Galvanized Binding Wire

Diameter:

BWG8-BWG22

Material:

Low Carbon Steel Q195

Zinc Rate:

20-30g/m2

Tensile Strength:

30kg-70kg/mm2 350-550/mm2

Elongation Rate:

10%-25%

Weight/coil:

0.1kg-1000kgs/coil

Packing:

As Your Request

Wire Mesh And Fencing , Construction Binding

Supply Ability:

500 tons one month

Highlight:

30g 12 gauge galvanized wire

Binding 12 gauge galvanized wire

BWG22 gi steel wire

Product Description

BWG22 Z20-30g Electro Galvanized Binding Wire For Construction

Electro Galvanized Binding Wire Product Information

Electro galvanized binding wire(Cold galvanized iron wire ) is to gradually coat the metal surface with zinc through the unidirectional current in the electroplating tank. The production speed is slow, the coating is uniform, and the thickness is thin, usually only 3-15 microns. The appearance is bright and the corrosion resistance is not as good as Hot dip galvanized iron wire, but compared with hot-dip galvanized iron wire, the production cost of electro galvanized iron wire is lower.

Electro Galvanized Binding Wire Characteristics

Electro galvanized iron wire-the zinc coating is thiner more than hot dipped galvanized iron wire, crystallized finely, uniformly and without pores, and has good corrosion resistance; the zinc layer obtained by electroplating zinc wire is relatively pure and corrodes slowly in acid, alkali and other mist, effectively protecting the base of fastened sand parts and the zinc coating.Since the galvanized layer has good ductility, it can be cold punched, rolled, bent, etc.Does not damage the coating.

Electro Galvanized Binding Wire Application

The fields involved in electro galvanized iron wire are becoming more and more extensive. The application of fastener products has spread throughout machinery manufacturing, electronics, precision instruments, chemical industry, transportation, aerospace, etc. It is of great significance in the national economy.

Electro Galvanized Binding Wire Parameter:

Diameter (mm)	Allow Tolerance (mm)	Tensile Strength (N/mm2)	Elongation	Zinc Coated (g/m2)	Weigth Of Packing(kg)
0.30-0.65	±0.01	300-370	≥15%	8-25	Spool	Coi
0.30-0.65	±0.01	300-370	≥15%	8-25	7-100	10-20
0.70-1.60	±0.01	300-490	≥15%	8-25	25- 100kg/coil;max350kg/coil
1.80-2.70	±0.02	≤550	≥15%	10-50	max1000
3.20-5.00	±0.03	≤550	≥15%	10-50	max1000

Electro Galvanized Binding Wire Size:

Wire Gauge Size	SWG(mm)	BWG(mm)	metric(mm)
8	4.06	4.19	4.00
9	3.66	3.76	-
10	3.25	3.40	3.50
11	2.95	3.05	3.00
12	2.64	2.77	2.80
13	2.34	2.41	2.50
14	2.03	2.11	-
15	1.83	1.83	1.80
16	1.63	1.65	1.65
17	1.42	1.47	1.40
18	1.22	1.25	1.20
19	1.02	1.07	1.00
20	0.91	0.89	0.90
21	0.81	0.813	0.80
22	0.71	0.711	0.70

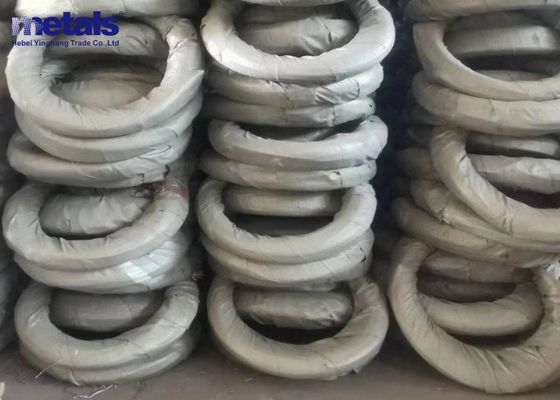

Electro Galvanized Binding Wire Package Pictures:

1.inside pvc film outside hessian.

2.inside pvc film outside woven bag.

3.As your request

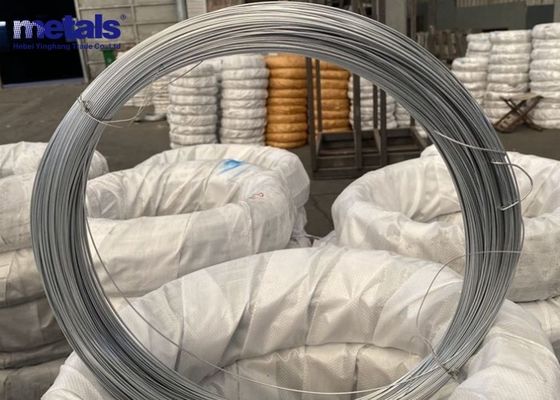

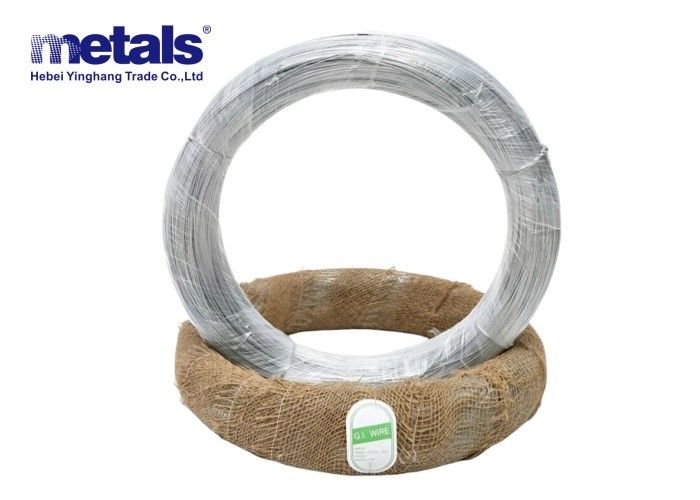

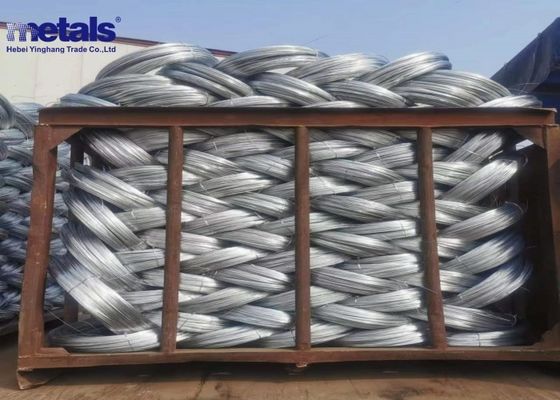

Products Display of Electro Galvanized Binding Wire

Z20-30g Electro 12 Gauge Galvanized Wire Binding Steel For Construction BWG22 0

Z20-30g Electro 12 Gauge Galvanized Wire Binding Steel For Construction BWG22 1

Z20-30g Electro 12 Gauge Galvanized Wire Binding Steel For Construction BWG22 2

Z20-30g Electro 12 Gauge Galvanized Wire Binding Steel For Construction BWG22 3
