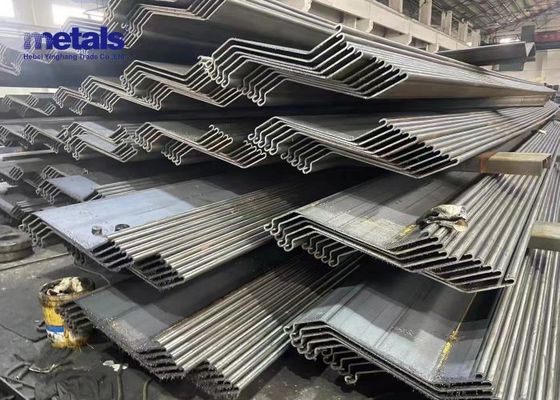

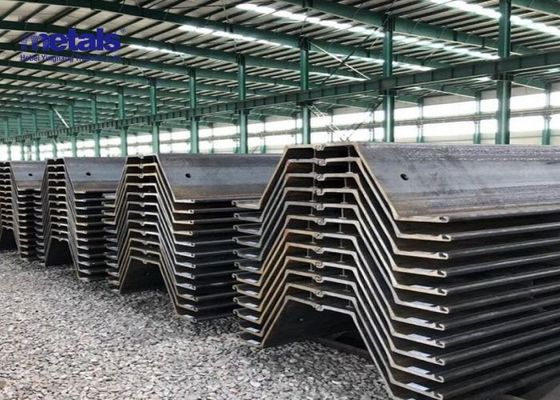

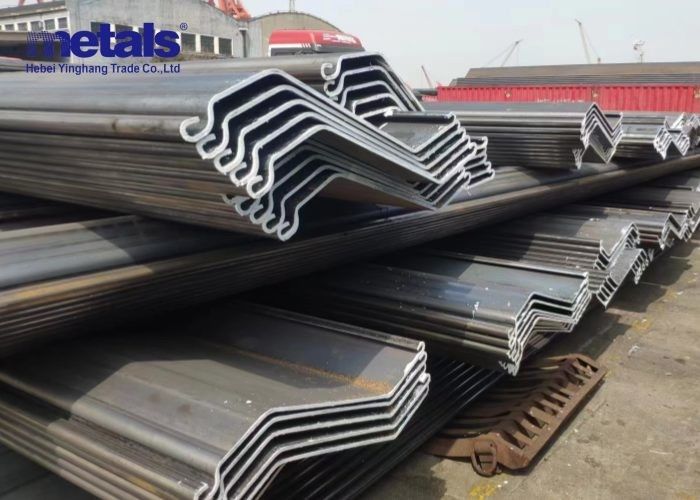

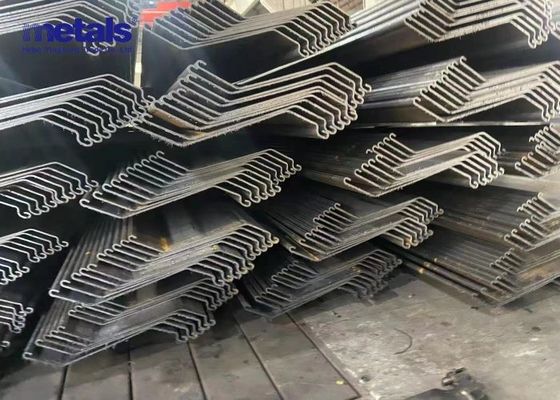

Z Type Steel Sheet Piles for Cofferdam Construction

All Category

Steel Piles

Mr. Peter Zhang

peter@hbyinghang.com

+8615833385859

Contact Now

Z Type Steel Sheet Piles for Cofferdam Construction

Brand Name:	Yinghang
Model Number:	Zpile
MOQ:	500tons
Price:	USD500-800/T
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS ISO

Product Name:

Z Type Steel Sheet Pile Korea/philippine

Corrosion Resistance:

Strong/Weak

Application:

Construction/Manufacturing/Transportation

Edge:

Mill/Slit/Round

Shape:

Z And U Type Steel Sheet Piles

Material:

Steel

Surface Treatment:

Galvanized/Coated/Polished

Standard:

ASTM/GB/JIS

Usage:

Support,Construction,Floor Decking,Duilding Purlin

Strength:

High/Low/Medium

Form:

Coil/Sheet/Bar/Pile

Thickness:

0.5mm-20mm

Tolerance:

+/-0.02mm

Width:

100mm-2000mm

Supply Ability:

1000000 tons per year

Highlight:

HR Steel Piles

Cofferdam Steel Piles

HR sheet piles construction

Product Description

Z Shape Steel Piles Sheet HR CR For Cofferdam Construction

Product Specifications

Product name	Z type steel sheet pile korea/philippine
Corrosion Resistance	Strong/Weak
Application	Construction/Manufacturing/Transportation
Edge	Mill/Slit/Round
Shape	Z And U Type Steel Sheet Piles
Material	Steel
Surface Treatment	Galvanized/Coated/Polished
Standard	ASTM/GB/JIS
Usage	Support, Construction, Floor Decking, Building Purlin
Strength	High/Low/Medium
Form	Coil/Sheet/Bar/Pile
Thickness	0.5mm-20mm
Tolerance	+/-0.02mm
Width	100mm-2000mm

Product Description

Z Hot Rolled Steel Sheet Pile are structural members which when interlocked form a continuous wall, primarily for retaining earth or water. Steel sheet piling is the dominant choice due to its strength, availability, and ease of handling, storage, and installation.

Sheet pile shapes have evolved from simple channel sections to today's high strength "Z" shapes. The Z type configuration is considered the strongest and most efficient, resembling wide-flange beams with a web and two flanges.

The interlocks are located on the flanges at maximum distance from the neutral axis, providing high section modulus for resisting bending moments. This makes Z-shapes ideal for heavy construction projects, though lighter versions are now available.

Technical Specifications

Section	Width (mm)	Height (mm)	Web (mm)	Cross-Sectional Area (cm²/m)	Weight (kg/m)	Section Modulus (cm³/m)	Moment of Inertia (cm⁴/m)	Coating Area (m²/m)
17-700	700	419.5	8.5	93.3	73.2	1731	36304	1.86
18-700	700	420	9	97.7	76.7	1804	37894	1.86
19-700	700	420.5	9.5	102.1	80.1	1878	39485	1.86
20-700	700	421	10	106.5	83.6	1951	41076	1.86
24-700	700	439	11	121.2	95.1	2432	53379	1.93
26-700	700	440	12	130.6	102.5	2606	57329	1.93
28-700	700	441	13	140	109.9	2779	61279	1.93
36-700	700	499	11	150.5	118.1	3600	89826	2.05
38-700	700	500	12	160.4	125.9	3800	95004	2.05
40-700	700	501	13	170.3	133.7	3999	100184	2.05

Key Advantages

Extremely competitive section-modulus-to-mass ratio
Increased inertia for reduced deflection
Large width for excellent installation performance
Superior corrosion resistance with thicker steel at critical points

The continuous web form and symmetrical interlock placement on each side of the neutral axis contribute to the exceptional section modulus of HRZ Hot Rolled steel sheet piles.
