Galvanized Iron Wire

Zinc Coated 14 Gauge Galvanized Wire Steel Z30-360g For Chain Link Fence

All Category

Steel Piles

Mrs. Michelle Zhang

michelle@hbyinghang.com

+8613582361243

+8613582361243

Contact Now

Zinc Coated 14 Gauge Galvanized Wire Steel Z30-360g For Chain Link Fence

Brand Name:	YINGHANG
Model Number:	3.6MM
MOQ:	5 tons
Price:	according size
Packaging Details:	Plastic inside, outside hessian or naylon woven
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Products Name:

Hot Dipped Zinc Coated Z30-360g Galvanized Iron Wire For Chain Link Fence

Keyword:

Galvanized Iron Wire

Packing:

Plastic Inside, Outside Hessian Or Naylon Woven

Diameter:

BWG5-BWG24

Used To Wire Ropes, Wire Mesh And Fencing , Construction Binding And Wire Mesh Weaving

Zinc Rate:

30-360g/m2

Material:

Low Carbon Steel Q195

Elongation Rate:

10%-25%

Tensile Strength:

30kg-70kg/mm2

Weight/coil:

0.1kg-1000kgs/coil

Supply Ability:

500 tons one month

Highlight:

Z30 14 gauge galvanized wire

Zinc Coated 14 gauge galvanized wire

Zinc Coated steel wire galvanized

Product Description

Hot Dipped Zinc Coated z30-360g Galvanized Iron Wire For Chain Link Fence

Galvanized Iron Wire(Galvanized steel wire, galvanized iron wire, G.I wire) is devided into hot-dip galvanized iron wire and electro galvanized iron wire in terms of galvanization method. The most common method is hot-dip galvanizing, in which the wire is submerged in a bath of molten zinc. Normally Hot-dip galvanized iron wire has two grades in zinc layer thickness: regular coating and Heavy coating. compared with electro galvanization, hot-dip galvanization deposits not only a thicker zinc layer, but also a robust layer of zinc iron alloys on the surface of iron wire, which improve the ability of corrosion prevention of iron wire.

Hot dip galvanizing is dipped plating in hot melt zinc liquid, production speed, thicker but uneven coating, the market allows the lowest thickness of 45 microns, up to 300 microns above. It is dark in color, consumes more zinc metal, forms infiltration layer with base metal, and has good corrosion resistance. Hot dip galvanizing can be maintained for decades in outdoor environment.

Hot Dipped Galvanized Iron Wire Specification:

Material	Low Carbon Steel Q195
Diameter	BWG5-BWG24
Zince Coated	30-360g/M2
Tensile Strength	350-550mpa/mm2
Elongation Rate	10%-25%
Weight/coil	0.1kg-1000kg/coil
Packing	Plastic Inside Outside Hessian or Nylon Woven
Applicatons	Use to Wire Rops, Wire Mesh And Fencing Weaving, Consruction Binding .

Hot Dipped Galvanized Iron Wire Size:

Wire Gauge	SWG in mm	BWG in mm	in Metric System mm
8#	4.06	4.19	4
9#	3.66	3.76	-
10#	3.25	3.4	3.5
11#	2.95	3.05	3
12#	2.64	2.77	2.8
13#	2.34	2.41	2.5
14#	2.03	2.11	-
15#	1.83	1.83	1.8
16#	1.63	1.65	1.65
17#	1.42	1.47	1.4
18#	1.22	1.25	1.2
19#	1.02	1.07	1
20#	0.91	0.89	0.9
21#	0.81	0.813	0.8
22#	0.71	0.711	0.7

Hot Dipped Galvanized Iron Wire Manufacturing process:

Steel bar coils - Pretreatment - Drawing - Rust removal - Pickling --Hot-dip galvanizing --Annealing - (Re-drawing) --Coiling -Quality control -Packaging

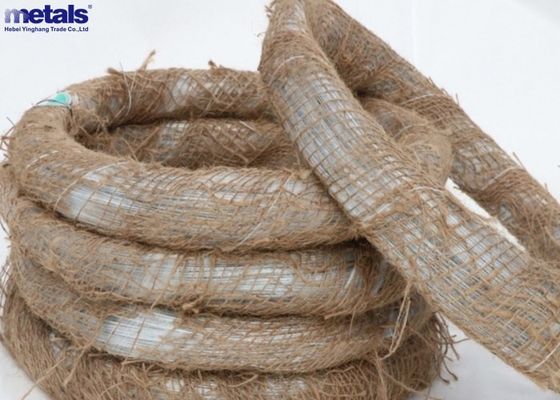

Hot Dipped Galvanized Iron Wire Detail Packing:

inside pvc film outside hessian.
inside pvc film outside woven bag.
customization

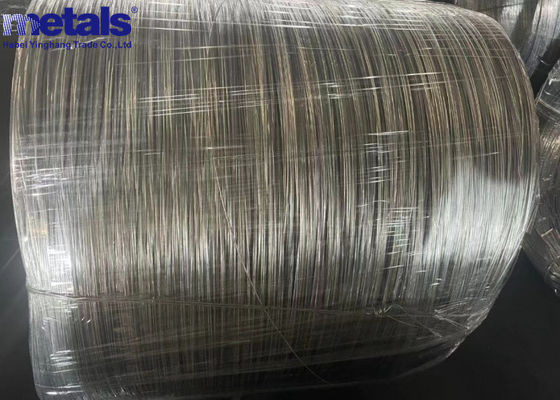

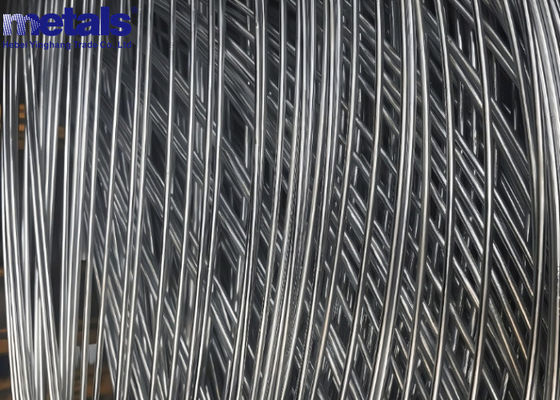

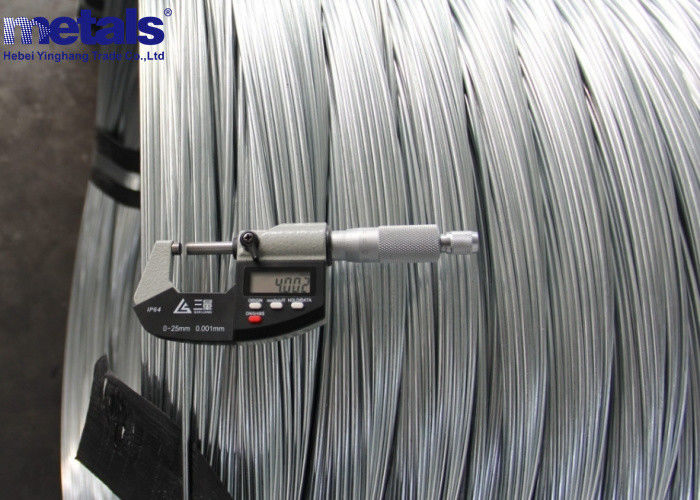

Zinc Coated 14 Gauge Galvanized Wire Steel Z30-360g For Chain Link Fence 0

Zinc Coated 14 Gauge Galvanized Wire Steel Z30-360g For Chain Link Fence 1
