Woven Mesh Screen

Woven Anti Corrosion Galvanised Square Mesh Screen For Window Screen

All Category

Steel Piles

Mrs. Michelle Zhang

michelle@hbyinghang.com

+8613582361243

+8613582361243

Contact Now

Woven Anti Corrosion Galvanised Square Mesh Screen For Window Screen

Brand Name:	Yinghang
Model Number:	18x18
MOQ:	500 rolls
Price:	according to the market
Packaging Details:	waterproof paper+plastic film+woven bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS,ISO

Product Name:

Galvanized Square Wire Mesh Woven Mesh Screen For Window Screen

Key Words:

Woven Mesh Screen

Application:

Woven Wire Mesh,Filters,Screen

Weave Style:

Plain Weave

Feature:

Corrosion Resistance,Anti Corrosion

Material:

Galvanized Steel Wire

Type:

Weave Wire Mesh,Wire Cloth

Color:

Silver,black,customized,Bright

Supply Ability:

1000rolls one week

Highlight:

Anti corrosion galvanised square mesh

woven window screen galvanised square mesh

Anti corrosion galvanized square wire mesh

Product Description

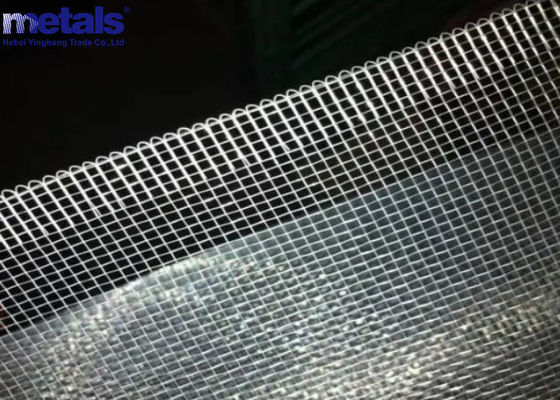

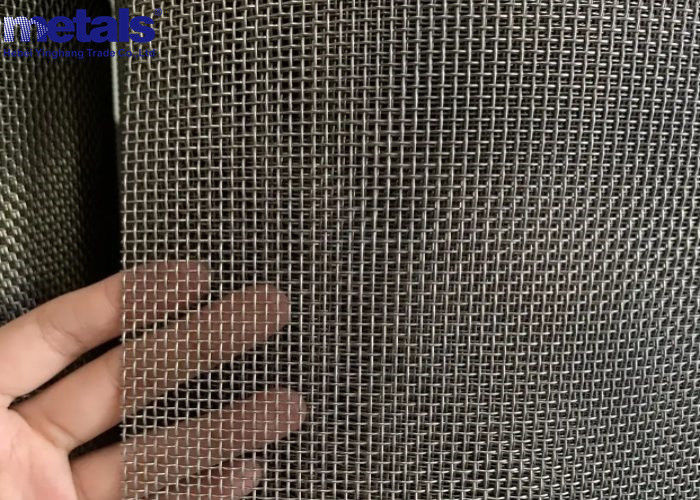

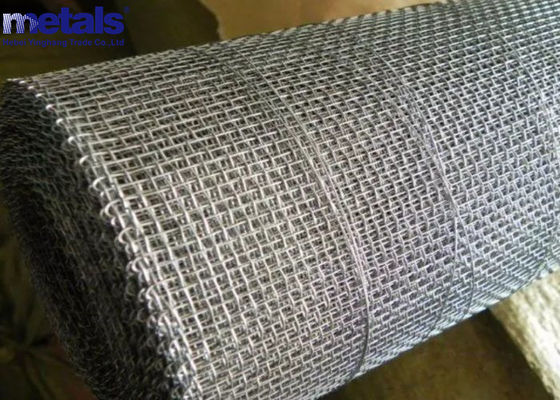

Galvanized Square Wire Mesh Woven Mesh Screen For Window Screen

Square Wire Mesh is made of selected low carbon steel wire,wires are woven one next to another to mesh by advanced machines .It has features of precise structure,uniform mesh,perfect corrosion resistance,durability and so on.It’s a vey good choice for multipurpose use. Square iron wire mesh is made of selected low carbon iron wire with precision construction, uniform mesh, fine rust resistance and durable service. It is extensively used in industries and constructions to sieve grain powder, filter liquid and gas, for other purposes like safety guards on machinery enclosures. Besides, it is widely substitute for wood strips in making wall and ceiling.

The catagories of Galvanized Square Wire Mesh

According to the different manufacturing process of the galvanized square wire mesh, it can be divided into the following four categories:

Hot dipped galvanized square wire mesh before weaving

Hot dipped galvanized square wire mesh after weaving

Electro galvanized square wire mesh before weaving

Electro galvanized square wire mesh after weaving

The Specification of Galvanized Square Wire Mesh

Mesh Opening	Wire Thickness	Width		Length
Mesh	MM	Inch	M	M
2 x 2	0.81-1.65	12-60	0.3-1.5	25; 30
3 x 3	0.71-1.07	12-60	0.3-1.5	25; 30
4 x 4	0.56-0.89	12-60	0.3-1.5	25; 30
5 x 5	0.46-0.71	12-60	0.3-1.5	25; 30
6 x 6	0.46-0.71	12-60	0.3-1.5	25; 30
7 x 7	0.46-0.63	12-60	0.3-1.5	25; 30
8 x 8	0.40-0.63	12-60	0.3-1.5	25; 30
10 x 10	0.30-0.63	12-60	0.3-1.5	25; 30
12 x 12	0.25-0.63	12-60	0.3-1.5	25; 30
14 x 14	0.21-0.63	12-60	0.3-1.5	25; 30
16 x 16	0.21-0.63	12-60	0.3-1.5	25; 30
18 x 18	0.21-0.40	12-60	0.3-1.5	25; 30
20 x 20	0.21-0.40	12-60	0.3-1.5	25; 30
22 x 22	0.17-0.25	12-60	0.3-1.5	25; 30
24 x 24	0.17-0.25	12-60	0.3-1.5	25; 30
28 x 28	0.17-0.23	12-60	0.3-1.5	25; 30
30 x 30	0.17-0.23	12-60	0.3-1.5	25; 30
40 x 40	0.17-0.23	12-60	0.3-1.5	25; 30
50 x 50	0.17-0.21	12-60	0.3-1.5	25; 30
60 x 60	0.16-0.17	12-60	0.3-1.5	25; 30

Square Wire Mesh Application:

Square wire mesh is punched into various filter pieces, and can also be spot welded into multi-layer filter pieces with different mesh sizes.It is used as a mechanical accessory and a mechanical ventilation protective cover for safety protection.

Used for filtration in rubber industry, plastic industry, petroleum, chemical industry and grain industry.

Used as window screens in construction industry.

Used as a sieve to screen various ores, gravels and soils.

Used as a medical sieve in the pharmaceutical industry.

Used in chemical industry to filter liquid and gas.

Square Wire Mesh Packing:

water proof paper inside and plastic woven bag outside or waterproof paper inside hessian outside,pallet or other packing way can be made according to your needs.
