Hot Dipped Galvanized Iron Wire Low Carbon Steel Wire For Construction

Brand Name:	YINGHANG
Model Number:	BWG4-BWG24
MOQ:	5 tons
Price:	according size
Packaging Details:	Plastic inside, outside hessian or naylon woven
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Products Name:

Hot Dipped Galvanized Iron Wire Low Carbon Steel Wire For Construction

Keyword:

Galvanized Iron Wire

Galvanized Technique:

Hot Dipped Galvanized,Electro Galvanized

Material:

Packing:

Plastic Inside, Outside Hessian Or Naylon Woven

Zinc Rate:

30-360g/m2

Application:

Binding Wire Or Woven Wire Mesh

Elongation Rate:

10%-25%

Tensile Strength:

350-550N/mm2

Wire Gauge:

0.7mm-4.0mm

Supply Ability:

500 tons one month

Highlight:

Low Carbon Steel Galvanized Iron Wire

Construction Galvanized Iron Wire

Hot Dipped Galvanized Iron Wire

Product Description

Hot Dipped Galvanized Iron Wire Low Carbon Steel Wire For Construction

Galvanized iron wire is made with mild steel, hard-drawn, and then galvanized. It is rust-resistant, and very versatile in applications. Galvanized iron wire can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire. galvanized wire is divided into hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). Galvanized wire has good toughness and flexibility, the maximum amount of zinc can reach 350 g /sqm. With zinc coating thickness, corrosion resistance and other characteristics.

Galvanized wire(Galvanized steel wire, galvanized iron wire, G.I wire) is devided into hot-dip galvanized wire and electro galvanized wire in terms of galvanization method. The most common method is hot-dip galvanizing, in which the wire is submerged in a bath of molten zinc. Normally Hot-dip galvanized wire has two grades in zinc layer thickness: regular coating and Heavy coating.

Hot Dipped Galvanized Iron Wire Specification:

Material	Low Carbon Steel Q195
Diameter	BWG5-BWG24
Zince Coated	30-360g/M2
Tensile Strength	350-550mpa/mm2
Elongation Rate	10%-25%
Weight/coil	0.1kg-1000kg/coil
Packing	Plastic Inside Outside Hessian or Nylon Woven
Applicatons	Use to Wire Rops, Wire Mesh And Fencing Weaving, Consruction Binding .

Hot Dipped Galvanized Iron Wire Size:

Wire Gauge	SWG in mm	BWG in mm	in Metric System mm
8#	4.06	4.19	4
9#	3.66	3.76	-
10#	3.25	3.4	3.5
11#	2.95	3.05	3
12#	2.64	2.77	2.8
13#	2.34	2.41	2.5
14#	2.03	2.11	-
15#	1.83	1.83	1.8
16#	1.63	1.65	1.65
17#	1.42	1.47	1.4
18#	1.22	1.25	1.2
19#	1.02	1.07	1
20#	0.91	0.89	0.9
21#	0.81	0.813	0.8
22#	0.71	0.711	0.7

Galvanized Iron Wire Feature:

Higher tensile strength.
Good flexibility and softness.
Uniform zinc coating.
Strong corrosion resistance.

Galvanized Iron Wire Packing :

1. Plastic inside and nylon woven outside.

2. Plastic inside and hessian outside.

3.According customer ask.

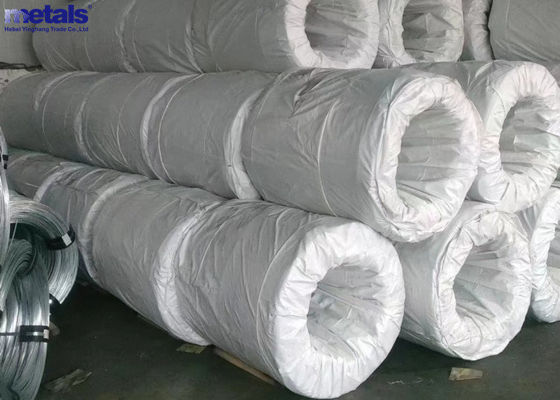

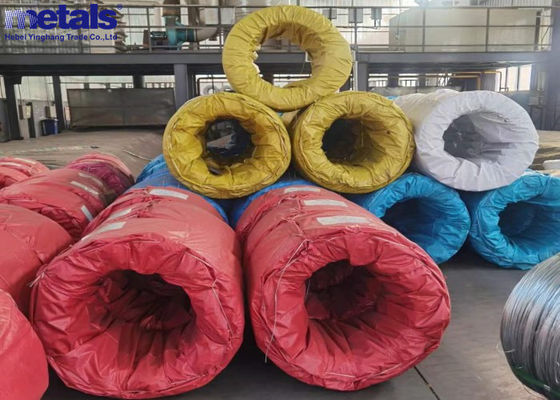

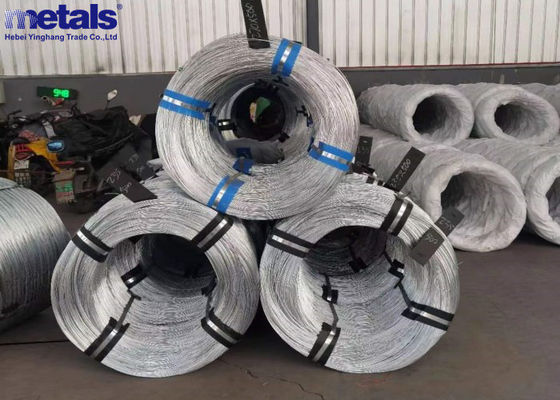

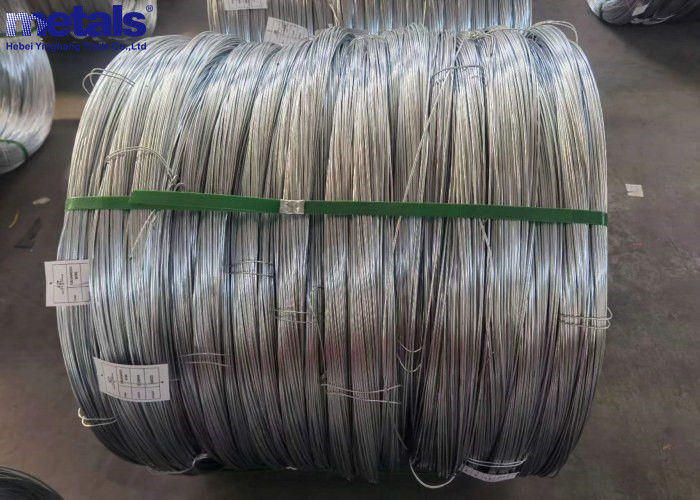

Hot Dipped Galvanized Iron Wire Low Carbon Steel Wire For Construction 0

Hot Dipped Galvanized Iron Wire Low Carbon Steel Wire For Construction 1
