65Mn 45 # Steel Crimped Crusher Woven Wire Mesh Screen For Stone Quarry

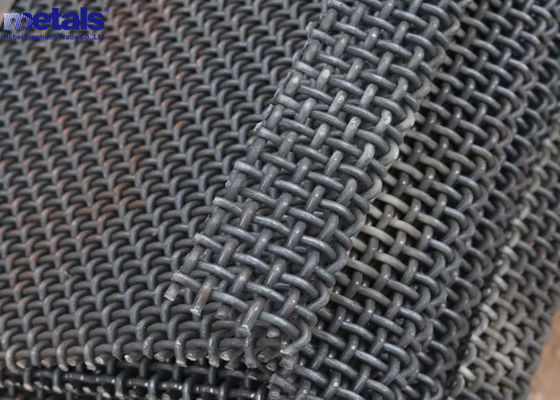

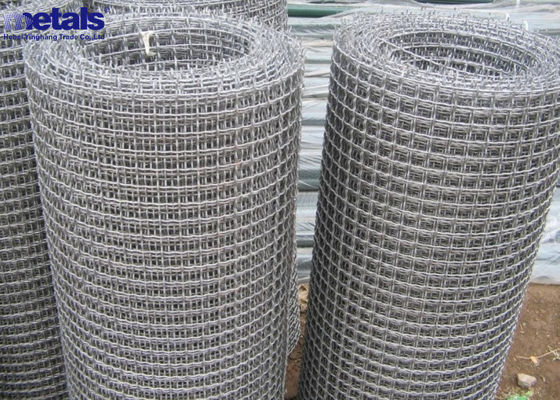

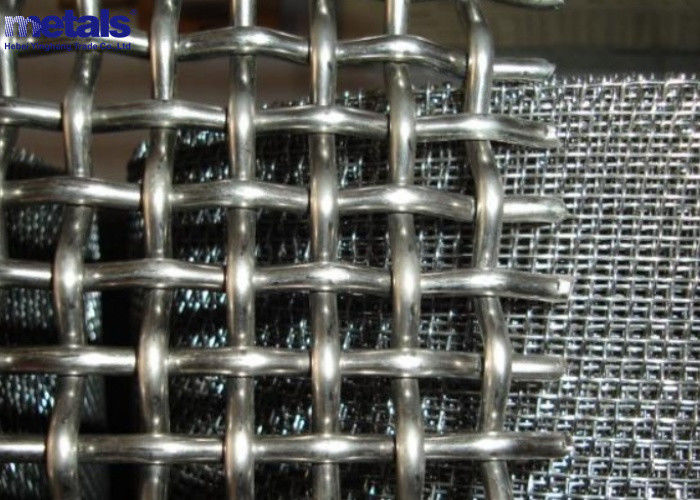

Crimped wire mesh is woven by a pre-bent metal wire. The metal wire is bent by mold, it makes the wire in both directions relative to the correct position, so ensuring the mesh size uniform.Stability, consistency and smooth surface are the features for this mesh.Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.

Material: SS304, 316L, 301, 302, 321, 202, manganese steel, Galv. steel, carbon Steel, black Iron, chrome polished steel.
General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
Weaving: Pre-crimping before Weaving.In two-way separated wave bending,locked bending,flat-topped curved,two-way bending,one-way separated wave bending.

Crimped Woven Wire Mesh Screen Specifications :

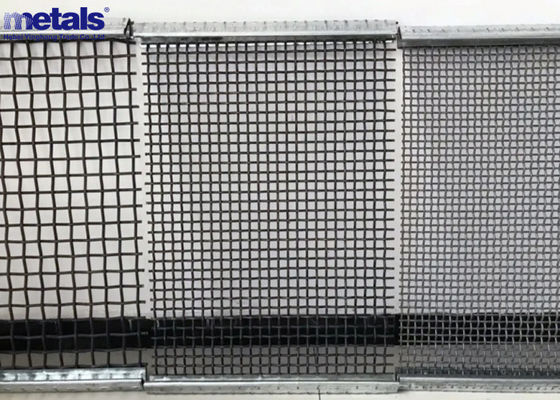

Mesh Type of Crimped Quarry Screen Mesh:

• Rectangular Slotted Mesh is economical to manufacture, and has a greater open area for increased air flow where binding or clogging occurs. The variable slot lengths mean it is often used to reduce flake content of material to acceptable levels.
• Extra Long Slotted Mesh is manufactured with double or triple cross wires. It is stronger and more cost effective in comparison to Piano Wire or Self-Cleaning Screens. It provides a high open area and higher throughput than normal slotted mesh, decreasing the risk of clogging or binding.
• Square Mesh is the most cost efficient of the Woven Mesh range with an expanded lifespan. The formation of the wire allows for screening and production of regular shaped material. Square Mesh decreases the risk of clogging.
• SELF CLEANING SCREENS are recommended where the prevention of clogging and anti-pegging are required, or in very difficult areas. Crimped and straight wires are connected by cross wires at regular intervals. The wires vibrate independently of each other.

Weaving Type Of Crimped Quarry Screen Mesh:

• Plain/Double: The plain weave is the most commonly used and simplest to weave. It is a standard type of weave for wire cloth resulting in square openings with wire sizes the same in both directions. Each warp wire passes alternately over and under fill wires at right angles, both directions.
• Twill Square: Each warp and shute is woven alternately over two and under two warp wires. This gives the appearance of parallel diagonal lines, allowing it to be used with heavier wires with a particular mesh count (that is possible with the plain weave wire cloth). This ability allows the applications of this wire cloth to be used for greater loads and finer filtration.
• Twill Dutch: A filter cloth that offers higher strength than regular Dutch weaves. It packs even more wires in a given area. Each shute wire typically passes over two warp wires and under two, producing square openings. Generally, this weave has finer mesh counts and lower flow than regular Dutch weaves and can be made to filter particles as fine as 2 microns in diameter.

​
